Description
Key Features
Motorised lift system lowers the bike support rail by 77 cm for easy loading/unloading
Suitable for all types of motorhomes
Mounts to the rear wall of the motorhome
12V push-button operation for smooth ascent and descent
Carries 2 bikes as standard, expandable to 4 standard bikes or 2 e-bikes with additional parts
Compatible with vertical wheelbase from 68 to 108 cm
What’s Included
Bike-Block Pro 1 & Bike-Block Pro 3 (locking systems)
Security Strip
2 x Rail Plus (bike rails)
Mounting Brackets
To expand to 4 bikes, add Bike-Block Pro 2 & 4 and two additional Rail Plus rails.
Specifications
Colour: Aluminium
Bike Capacity: 2 (standard), 4 (max with accessories)
Max Load: Not specified (typically around 60 kg for similar models)
E-Bike Compatible: Yes
Mounting Position: Rear wall of motorhome
Vertical Wheelbase: 68ย108 cm
Horizontal Wheelbase: 60 cm

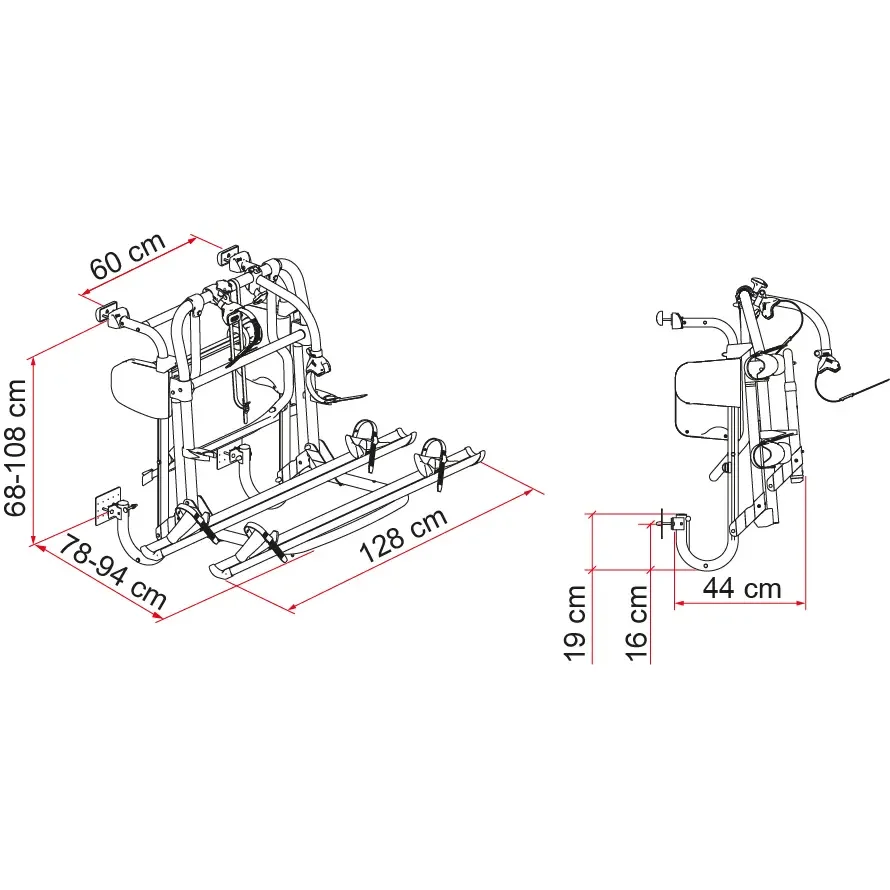

Dimensions: 128 x 78 x 68 cm
Distance Between Rails: 15 cm
Weight: Not specified
Adapter Kit: For vehicles with Kit Support Bar, use Fiamma part no. 08724-01-
