Description
Mounting: Installs under the rear window of motorhomes that have the Fiamma original bracket pre installed on them, allowing the window to remain operable.
Bike Capacity:
Standard: 2 bikes
Expandable: Up to 4 standard bikes (with additional parts)
Max Load: 60kg
Compact Design: Ideal for installations with limited vertical space.
Adjustability & Stability:
Height Adjustable: Vertical wheelbase from 40ย80 cm
Bottom Support Bar: Included for secure fixing
Supplied With:
1 x Bike-Block Pro 1 (locking system)
1 x Bike-Block Pro 3 (locking system)
Security Strip
2 x Rail Plus (bike rails)
Brackets
Technical Specs:
Vertical Wheelbase: 40ย80 cm (adjustable)
Horizontal Wheelbase: 60 cm (distance between brackets)
Distance Between Rails: 15 cm

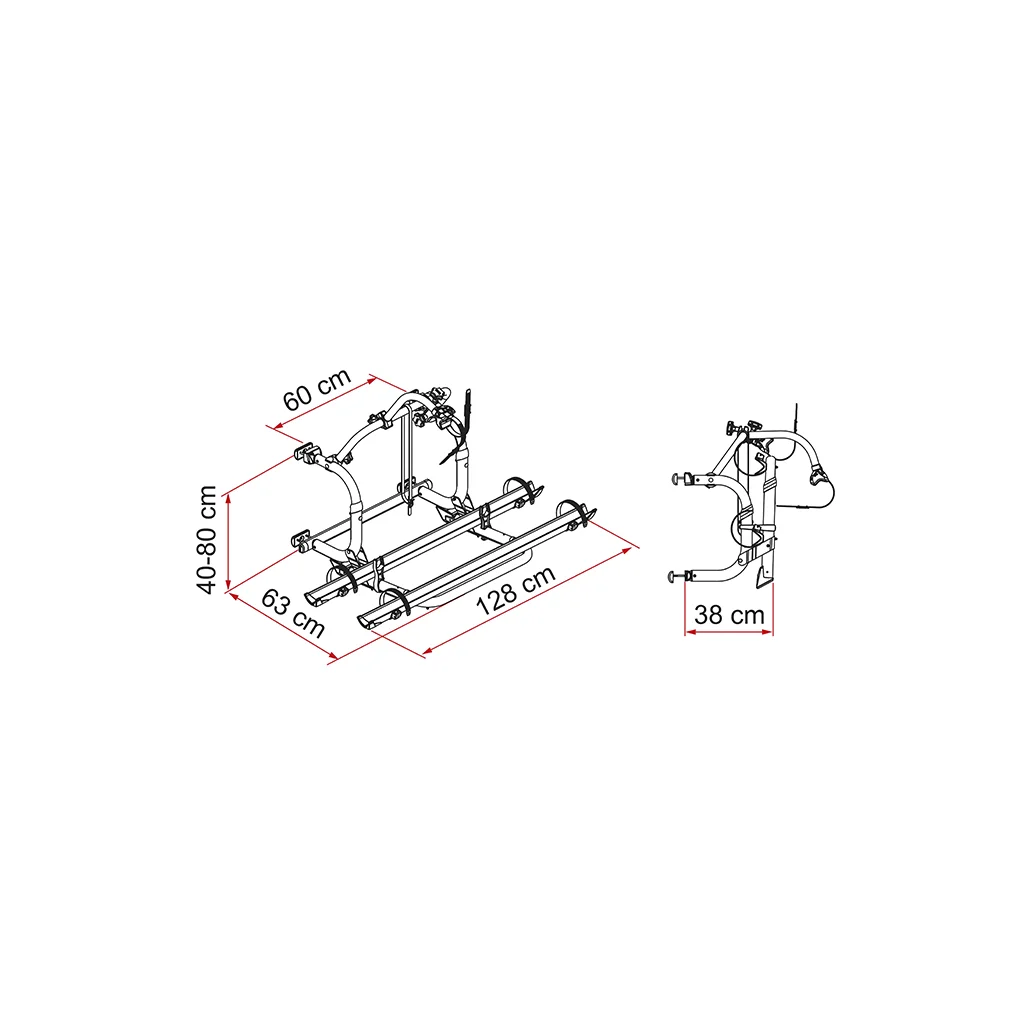

Dimensions: 128 x 63 x 40 cm (standard open position, minimum vertical wheelbase)
Expandability:
To carry up to 4 bikes, add:
Bike-Block Pro 2 and 4
Two additional Rail Plus rails
